SKIDERFlex +3.3V 1.2A Voltage Converter

General Description

The SKIDERFlex +3.3V 1.2A Voltage Converter is a tiny +3.5V-36V to +3.3V voltage converter with a maximum power rating of 1.2A. It utilizes the SKIDERFlex mounting system with various castellated holes for easy and rapid integration in every project or product. You will not have to fiddle with tiny SMD componentens to integrate this voltage converter into your design.


  • +3.3V Output at 1.2A
  • external +3.5V-36V supply
  • supports industrial/automotive temperature range (-40°C to +125°C)
  • integrated filtering capacitors
  • no external components needed for basic operation (except power supply and connections)
  • tiny form factor (7.62mm x 11.86mm)
  • compatible with breadboards

Electrical Characteristics

DC Characteristics

Description Value Unit
Minimum Input Voltage 3.5 V
Maximum Input Voltage 36 V
Output Voltage 3.3 V
Maxmimum Output Current 1.2 A

Block Diagram

Block Diagram

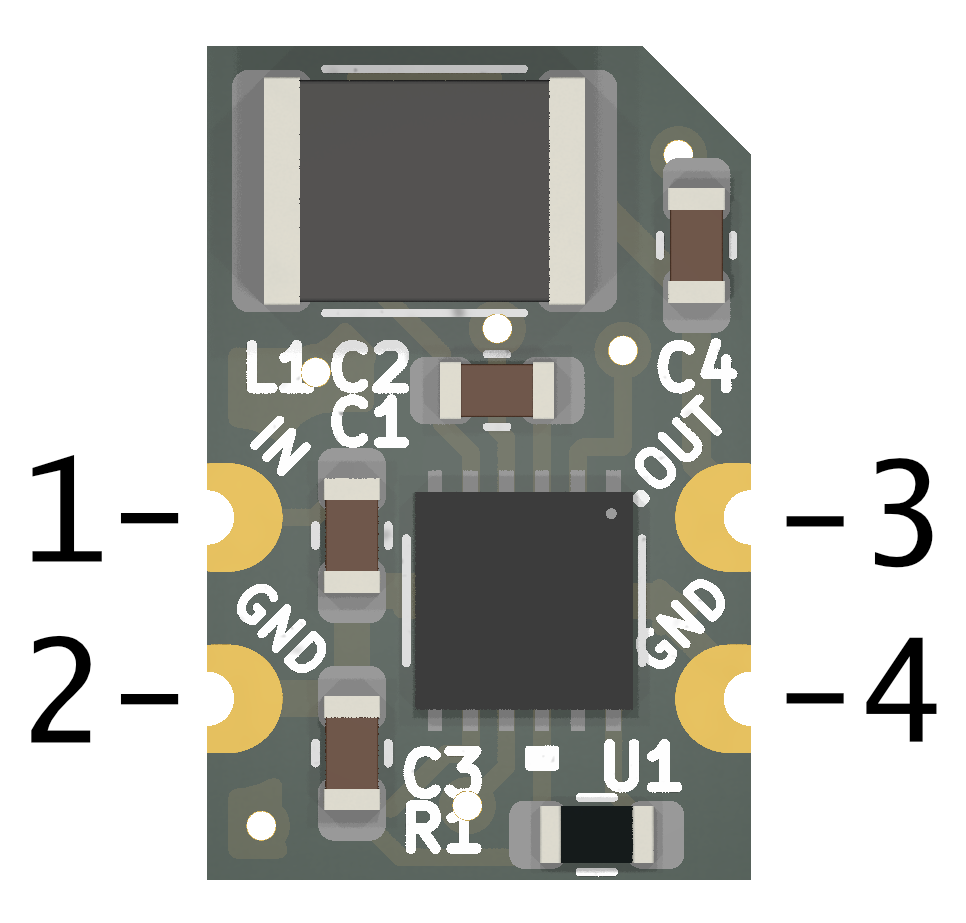

Pin Name Description
1 +3.5-36V IN Voltage Input. Can range from +3.5V up to +36V.
2, 4 GND GND Pins (For basic operation the connection of one GND pin is sufficient. For optimal filtering, both pins should be connected to GND.)
3 +3.3V OUT +3.3V Output. Maximum supplied current is 1.2A.

Other Specifications

Description Value Unit
Operating Temperature -40 to +125 °C
Storage Temperature -65 to +150 (Capacitors: +5C to +35°C) °C
Dimensions 7.62 x 5.08 x 3.2 mm
Weight TBD g

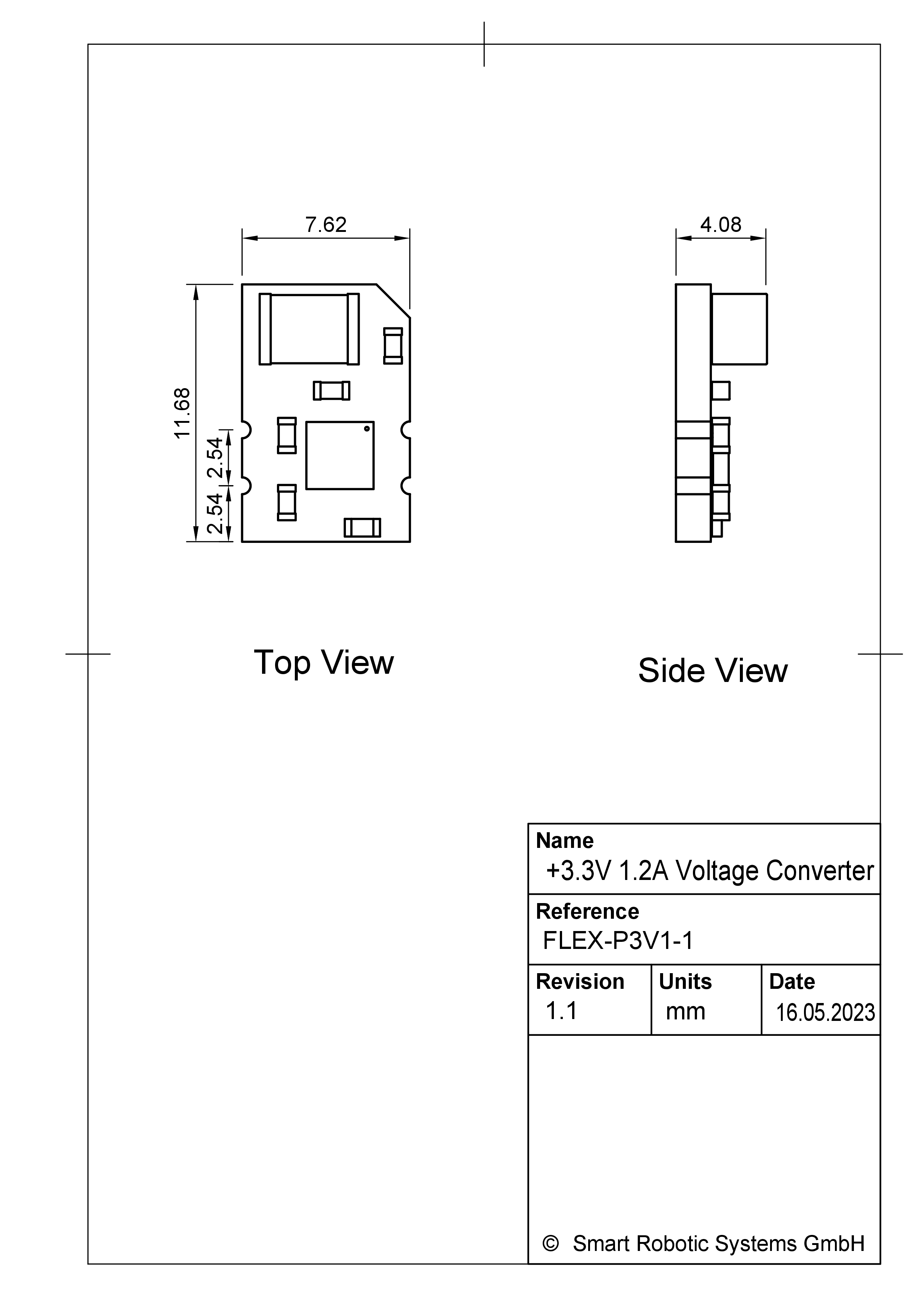

Mechanical Drawing

Mechanical Drawning

Typical Application

The SKIDERFlex +3.3V 1.2A Voltage Converter is intended for use on an application specific circuit board. Premade circuit boards can be acquired at (link to be verified). If you want to integrate the SKIDERFlex +3.3V 1.2A Voltage Converter into your own design, a KiCad Library can be found at (link to be verified). If you choose to integrate it into your own design, just connect the respective pins to their according lanes. No filter capacitors are needed.

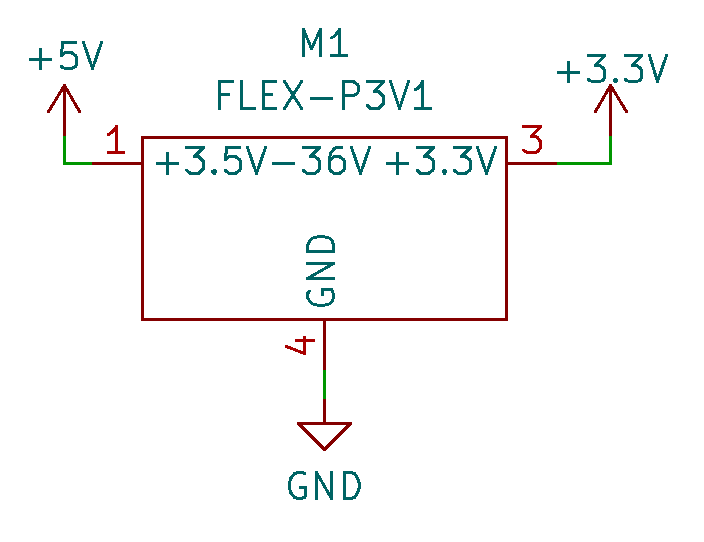

Typical Application Schematic

Environmental Compliance

The SKIDERFlex +3.3V 1.2A Voltage Converter is compliant with RoHS III (EU 2015/863). For more information please contact us at (e-mail to be verified)

Declaration of Conformity

Potentially compliant with 2014/30/EU. (definitely to be verified -> potentially no CE applicable / 2014/35/EU not applicable due to voltage < 75V)

Product Revisions

  • FLEX-P3V1-0:
  • initial version
  • FLEX-P3V1-1:
  • small visual improvements

Contact Information

If you have any further questions regarding this product, please feel free to contact us under (e-mail to be verified)
